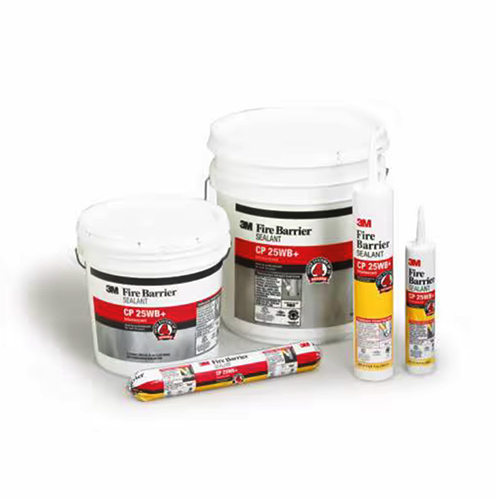

Firestopping - Firestop Sealant

• Adhesive Type
• Other, Water-based

• Application
• Commercial, industrial, and residential buildings

• CAS No
• Mixture (proprietary blend)

• Color
• Red

• Features
• Intumescent, elastomeric, water-based, paintable, low VOC, excellent adhesion

• Form
• Cartridge or Sausage

• Glue thickness
• Minimum 1/8 inch (3 mm) for firestop performance

• Grade
• Industrial

• Hardness
• 45-55 Shore A

• Holding Power
• Maintains seal up to 4 hours fire rating

• Material
• Other, Latex-based

• Other Names
• Intumescent Firestop Sealant

• Packaging Size
• 10.1 fl oz (300 mL) cartridge, 20 fl oz (590 mL) sausage, 5 gal (19 L) pail

• Physical State
• Other, Paste

• Purity
• High

• Shelf Life
• 18 months from date of manufacture

• Storage Temperature
• Below 77F (25C)

• Surface Of Application
• Metal pipes, cables, conduits, drywall, concrete, masonry, wood

• Tensile Strength
• >100 psi (minimum)

• Types Of Chemical
• Intumescent acrylic latex

• Usage
• Other, Firestopping penetrations and construction joints in fire-rated assemblies

• Adhesive Type
• Other, Water-based intumescent sealant

• Application
• Sealing penetrations in walls and floors, electrical conduits, pipes, and cables

• CAS No
• Mixture - Not applicable

• Color
• Red

• Features
• Intumescent, water-based, VOC compliant, paintable, easy application, meets fire code requirements

• Form
• Paste/Sealant

• Glue thickness
• Nominal 6 mm to 25 mm (dependent on application) Millimeter (mm)

• Grade
• Industrial

• Hardness
• 79 Shore A (ASTM D2240)

• Material
• Other

• Other Names
• Fire Barrier IC 15WB+, Intumescent Firestop Sealant

• Packaging Size
• 295 mL cartridge, 19 L pail

• Physical State
• Other, Paste

• Purity
• High (proprietary formulation)

• Shelf Life
• 12 months from date of packaging Months

• Storage Temperature
• Best stored at 20C to 25C Celsius (oC)

• Surface Of Application
• Gypsum, concrete, metal, wood, plastic, electrical conduits

• Tensile Strength
• 0.053 MPa (ASTM D412) Megapascals (MPa )

• Types Of Chemical
• Intumescent, firestopping compound

• Usage
• Other

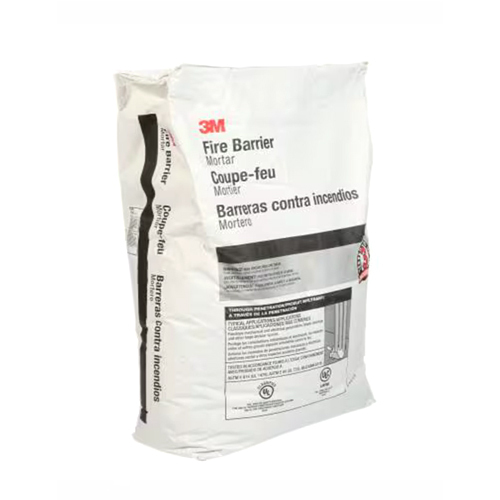

• Adhesive Type
• Other, Non-adhesive, cementitious product

• Application
• Used for firestopping blank openings and penetrations in walls and floors

• CAS No
• Mixture - Not Applicable

• Color
• Red

• Features
• Fire-rated, easy to mix, lightweight, load-bearing, foaming action, paintable after curing

• Form
• Powder (requires onsite mixing with water)

• Grade
• Industrial

• Hardness
• Hardens to rigid finish after curing

• Holding Power
• Designed to withstand movement

• Material
• Other, Cementitious blend with firestop additives

• Other Names
• Firestop Mortar, 3M Fire Barrier Mortar

• Packaging Size
• 20 kg bag, 18.2 L (large) and 9.1 L (small) pails

• Physical State
• Other, Powder (mixed with water before application)

• Shelf Life
• Up to 12 months in unopened packaging

• Storage Temperature
• Store at temperatures between 35F and 90F (2C to 32C)

• Surface Of Application
• Concrete, gypsum, metal, cable trays, pipes

• Tensile Strength
• 800 psi (5.5 MPa) nominal

• Types Of Chemical
• Inorganic cementitious compound

• Usage
• Other, Fire protection, sealing penetrations in fire-rated constructions

• Application
• Used on construction sites, power plants, data centers, and industrial facilities to help prevent flame propagation along grouped electrical cables

• CAS No
• N/A (mixture)

• Color
• White

• Features
• Water-based, intumescent, halogen-free, low VOC, easy application, suitable for interior use, helps prevent flame spread over cable trays, compatible with a variety of cable types

• Form
• Liquid (applied wet, dries to flexible solid)

• Glue thickness
• Recommended dry film thickness: 1.2 mm (47 mils)

• Grade
• Industrial

• Hardness
• Flexible film when dry

• Material
• Other, Water-based intumescent coating

• Other Names
• Intumescent cable coating

• Packaging Size
• 5-gallon pail or 44-lb (20 kg) pail

• Physical State
• Other, Viscous liquid (applied as a wet coating)

• Shelf Life
• 12 months (unopened, stored properly)

• Storage Temperature
• 40F to 90F (4C to 32C), protect from freezing

• Surface Of Application
• Electrical cables and cable trays

• Types Of Chemical
• Fire retardant polymer blend

• Usage
• Other, Fire protection coating for electrical cables

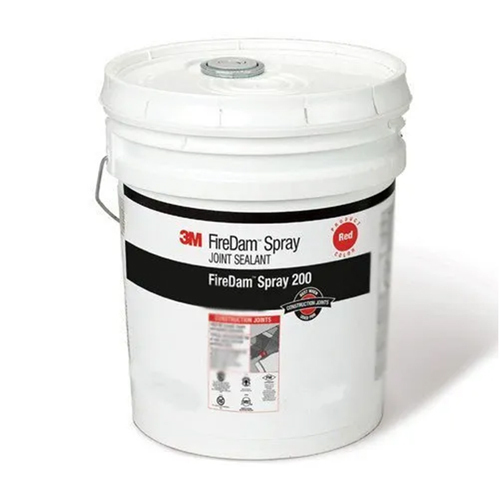

• Adhesive Type
• Other, Water-based acrylic

• Application
• Joints in walls and floors, perimeter joints, metal pipes, curtain walls, and head-of-wall joints

• CAS No
• Mixture (proprietary blend - consult SDS)

• Color
• Off-White

• Features
• Sprayable; elastomeric; water-based; fast drying; low VOC; compliant with UL standards; up to 3-hour fire rating

• Form
• Liquid

• Glue thickness
• Variable (depends on application); typically 1/8 in to 1/2 in (3.2 mm to 12.7 mm)

• Grade
• Industrial

• Hardness
• Shore A: 20-30

• Holding Power
• Provides excellent adhesion to concrete, masonry, wood, gypsum, and metal

• Material
• Other, Acrylic latex based

• Other Names
• FireDam Spray 200+, Fireblock Joint Sealant

• Packaging Size
• 5 gal (18.9 L) pail, 20 oz (591 mL) sausages, other

• Physical State
• Other, Sprayable Liquid

• Purity
• High performance formulation

• Shelf Life
• 12 months from date of manufacture (unopened)

• Storage Temperature
• Store between 40F (4C) and 90F (32C)

• Surface Of Application
• Concrete, metal, gypsum, wood, masonry, curtain walls

• Tensile Strength
• >100 psi (0.7 MPa)

• Types Of Chemical
• Acrylic Elastomeric Sealant

• Usage
• Other, Firestopping for construction joints; linear joint protection

• Adhesive Type
• Other, Acrylic-based Adhesive Layer (Pressure Sensitive)

• Application
• Electronic components, Mobile devices, Automotive electronics, Communication equipment, Servers

• Color
• Silver / Metallic Gray

• Features
• Flexible, Thin Profile, High Thermal Conductivity, EMI Shielding, Easy to Handle

• Form
• Sheet

• Glue thickness
• 0.05 mm (typical)

• Grade
• Industrial Grade

• Hardness
• Shore A 75 (typical)

• Holding Power
• High Adhesion, Maintains Position Under Compression

• Material
• Other, Polymer Matrix with Embedded Metal Fillers

• Other Names
• Thermal Interface Sheet, EMI Shielding Sheet

• Packaging Size
• Cut Sheets, Custom Sizes Available

• Physical State
• Other, Solid Sheet

• Purity
• High Purity Composite Material

• Shelf Life
• 12 months from manufacturing date (stored as recommended)

• Storage Temperature
• Room Temperature (Recommended 10C-35C)

• Surface Of Application
• Metal, Plastics, PCB surfaces

• Tensile Strength
• 12 MPa (approx)

• Types Of Chemical
• Composite (Polymer/Metal-Particle Blend)

• Usage
• Other, Thermal Interface Management, EMI Shielding in electronics

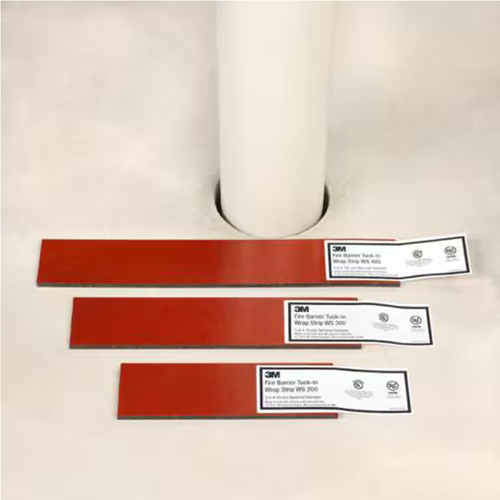

• Adhesive Type
• Other, N/A (non-adhesive wrap)

• Application
• Flexible wrap strip for firestopping applications in walls and floors

• CAS No
• N/A (proprietary blend)

• Color
• Red

• Features
• Expands with heat, non-adhesive, easy installation, UL classified, flexible, water-resistant

• Form
• Roll (strip form)

• Glue thickness
• N/A (does not use glue, pressure-applied)

• Grade
• Industrial

• Hardness
• Flexible strip

• Holding Power
• High adhesion when wrapped around penetrants

• Material
• Other, Intumescent elastomeric strip with fiberglass scrim

• Other Names
• 3M Intumescent Wrap Strip

• Packaging Size
• Rolls (commonly 1.75 in x 24 ft or as specified)

• Physical State
• Other, Solid, flexible

• Purity
• N/A (composite material)

• Shelf Life
• 24 months from date of manufacture

• Storage Temperature
• Store at 4C to 32C (40F to 90F)

• Surface Of Application
• Cables, plastic pipes, metal pipes, and bundled penetrants

• Tensile Strength
• >30 psi (207 kPa)

• Types Of Chemical
• Intumescent elastomer, proprietary fire-retardant chemicals

• Usage
• Other, Firestopping for electrical, plumbing and mechanical penetrations
